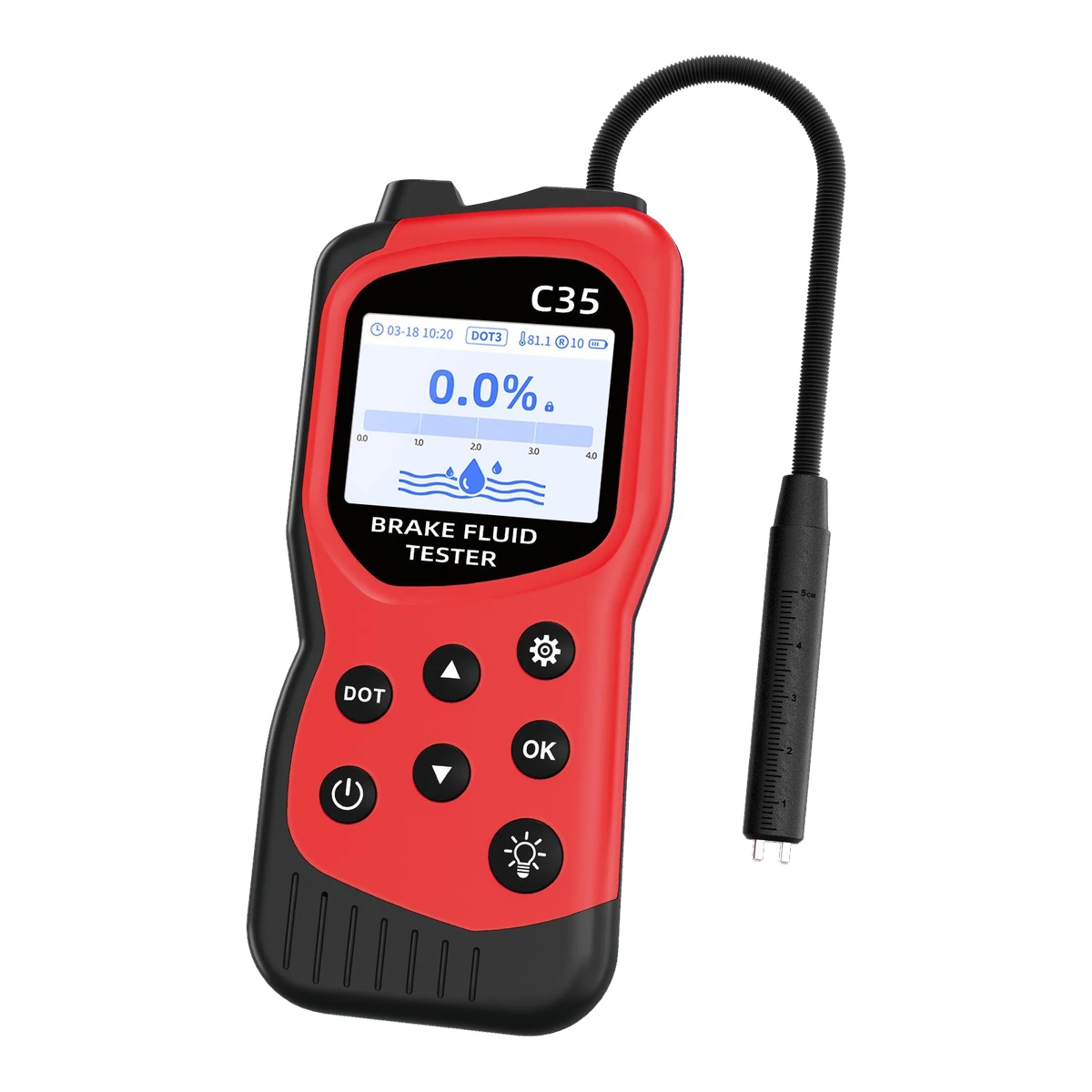

YMC35 2.4-inch Digital Brake Fluid Tester with Flexible Probe and 50 Test Records

Explore YMC35 automotive electronics sourcing.

DOT3 / DOT4 / DOT5.1 brake fluids
2.4-inch 320 x 240 TFT color display
205 mm flexible probe / 50 records

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

PRODUCT VIEWS

Explore views and colors.

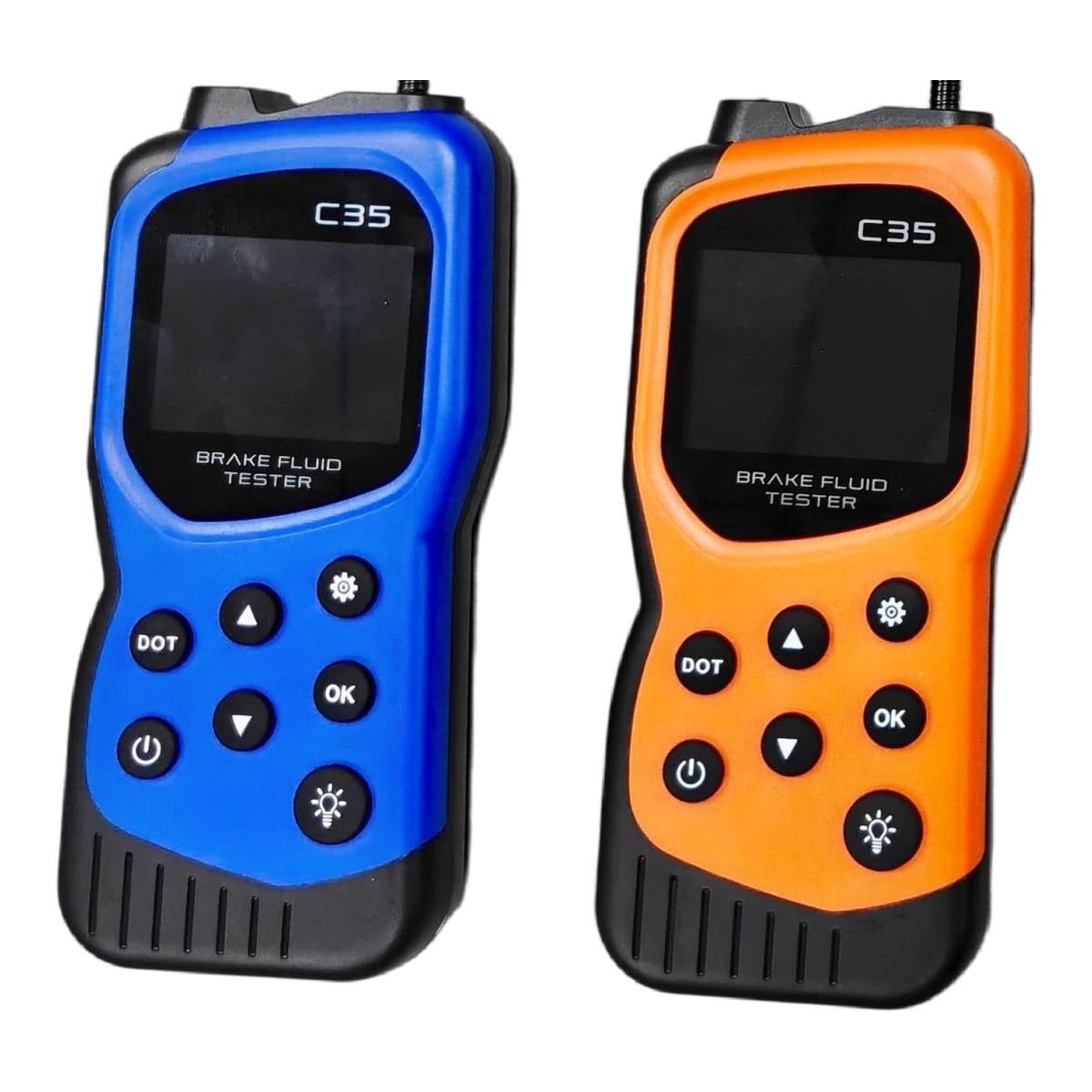

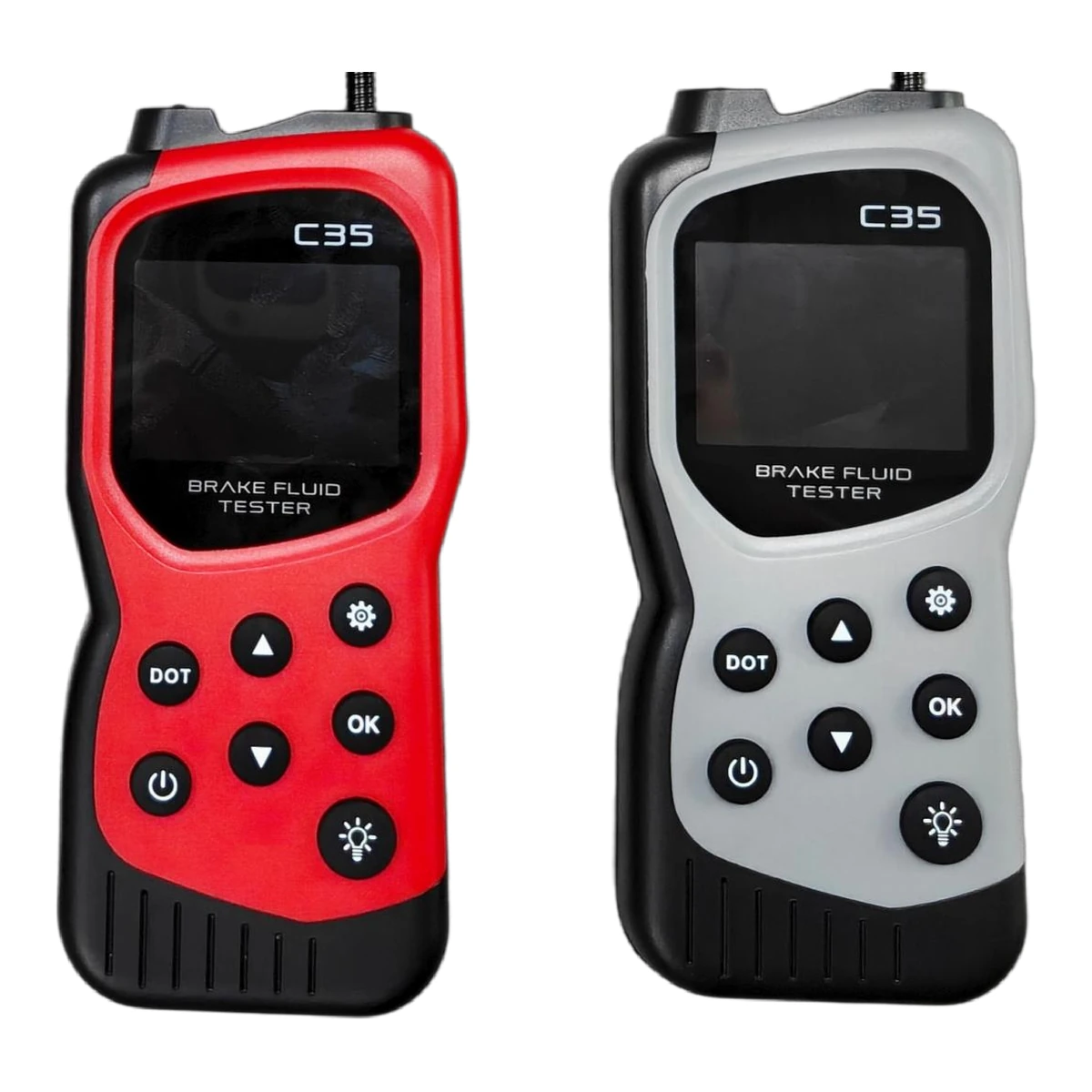

YMC35 additional product or color reference from the supplied catalog — Original catalog product view. Confirm selected model, color, configuration and included accessories.

MODEL DETAILS

Technical specifications

YMC35 2.4-inch Digital Brake Fluid Tester with Flexible Probe and 50 Test Records. DOT3 / DOT4 / DOT5.1 brake fluids. 2.4-inch 320 x 240 TFT color display. 205 mm flexible probe / 50 records. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: YMC35
Display resolution: 320 x 240 dots; TFT-LCD color display
Supported brake fluids: DOT3 / DOT4 / DOT5.1
Probe accuracy (supplier listed): Measurement error <= +/-1%; 360-degree bendable probe
Warning system: Green / yellow / red alerts; at water content >=3.0%, audible buzzer and red backlight
Reading lock: Automatic lock when the reading stabilizes within 30 seconds, as described by supplier
Record memory: Up to 50 records: test time, fluid type and water-content value
Lighting: LED illumination with 10 brightness levels
Firmware: OTA firmware updates
Power saving: Automatic sleep after 1 minute; standby current 30 uA after shutdown, as listed
Languages: 11 languages; confirm language pack
Current clarification: The parameter table labels 30 uA as operating current, while feature text identifies it as standby current. Active operating current requires confirmation.
Customization: Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE.
Material: ABS+silicone
Display: 2.4-inch TFT color display
Operating voltage (listed): 3V
Operating current (listed): 30uA
Operating temperature (listed): -20 C to 70 C
Storage temperature: -30 C to 70 C
Power supply (listed): 2 x AA batteries
Flexible probe length: 205mm; 360-degree bendable probe
Product dimensions: 164 x 75 x 26mm
Net product weight: 153g
Retail box dimensions: 210 x 125 x 32mm
Packed gross weight: Not stated in supplied catalog; confirm before ordering.
Master carton dimensions: 430 x 360 x 310mm
Carton quantity (not MOQ): 40pcs
Carton gross weight: Not stated in supplied catalog; confirm before ordering.
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
