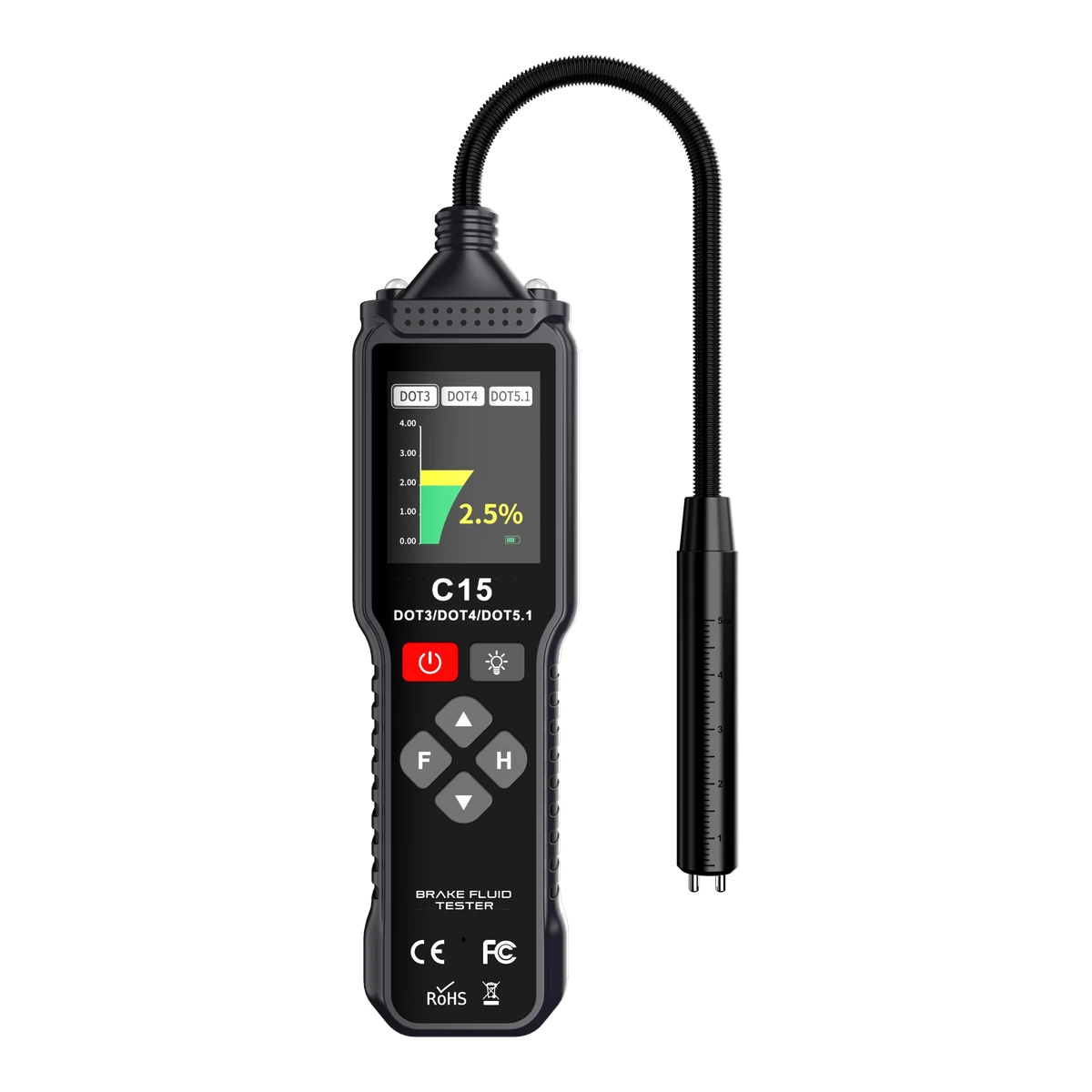

YMC15 Digital Brake Fluid Tester with 245 mm Flexible Probe and Color Display

Technical specifications

YMC15 Digital Brake Fluid Tester with 245 mm Flexible Probe and Color Display. DOT3 / DOT4 / DOT5.1. 128 x 160 TFT color display. 245 mm flexible probe / LED light. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model

YMC15

Display resolution

128 x 160 dots; TFT-LCD color display

Supported brake fluids

DOT3 / DOT4 / DOT5.1

Probe accuracy (supplier listed)

Measurement error <= +/-1%; 360-degree bendable probe

Warnings and reading lock

Three-color warning system, reading lock, audible buzzer and red backlight alert

Illumination

LED light with 10 brightness levels, synchronized on-screen indication and one-key operation

Power saving / languages

Automatic sleep after 1 minute; 8 built-in languages

Design

Compact anti-slip handheld design

Power clarification

The source lists 1-1.5V operating voltage and 2 x AAA batteries. Confirm actual assembled supply voltage and battery arrangement.

Customization

Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE.

Material

ABS+silicone

Display

3-digit TFT color display

Operating voltage (listed)

1V-1.5V

Operating current (listed)

60mA

Operating temperature (listed)

0 C to 50 C

Storage temperature

-20 C to 70 C

Power supply (listed)

2 x AAA batteries

Flexible probe length

245mm; 360-degree bendable probe

Product dimensions

40 x 150 x 25mm

Net product weight

88g

Retail box dimensions

83 x 188 x 33mm

Packed gross weight

146g

Master carton dimensions

510 x 310 x 410mm

Carton quantity (not MOQ)

100pcs

Carton gross weight

15.4kg

Documents listed by supplier

FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
