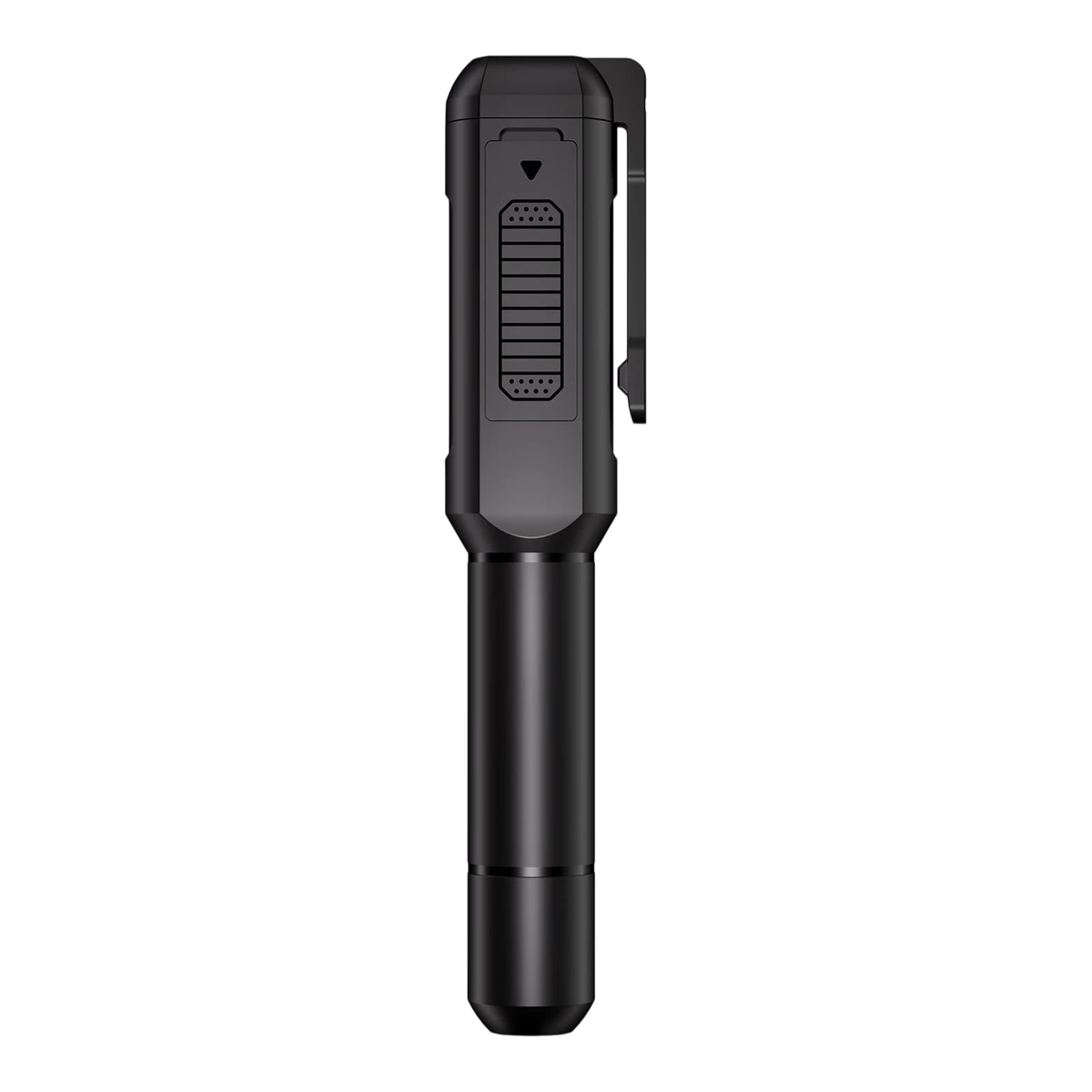

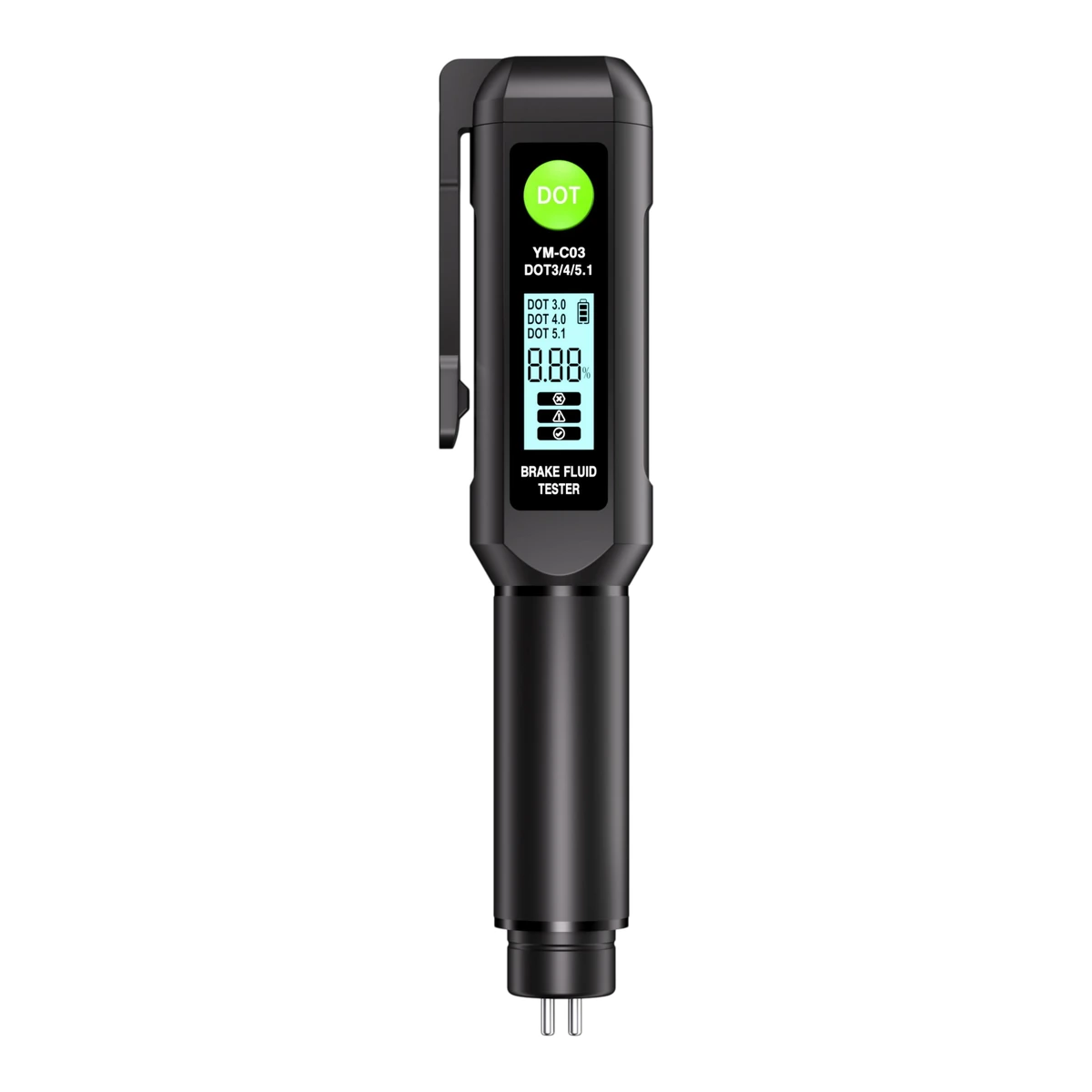

YMC03 Digital Brake Fluid Tester Pen with HTN Display and Audible Warning

Technical specifications

YMC03 Digital Brake Fluid Tester Pen with HTN Display and Audible Warning. DOT3 / DOT4 / DOT5.1 fluids. Three-digit HTN display. Audible warning / 1-minute auto sleep. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model

YMC03

Supported brake fluids

DOT3 / DOT4 / DOT5.1

Probe accuracy (supplier listed)

Measurement error <= +/-2%

Warning system

Audible buzzer and red backlight warning

Power saving

Automatic sleep after 1 minute

Design

Compact handheld pen with side clip

Customization

Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Language options are listed.

Material

ABS+silicone

Display

3-digit HTN display

Operating voltage (listed)

1V-1.5V

Operating current (listed)

11mA-46mA

Operating temperature (listed)

0 C to 55 C

Storage temperature

-20 C to 60 C

Power supply (listed)

1 x AAA battery

Vehicle / application reference

Brake fluid testing at 0-50 C; use the supported DOT grades listed for this model.

Product dimensions

153 x 30 x 25mm

Net product weight

38g

Retail box dimensions

156 x 34 x 28mm

Packed gross weight

51g

Master carton dimensions

520 x 280 x 140mm

Carton quantity (not MOQ)

100pcs

Carton gross weight

5.5kg

Documents listed by supplier

FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
