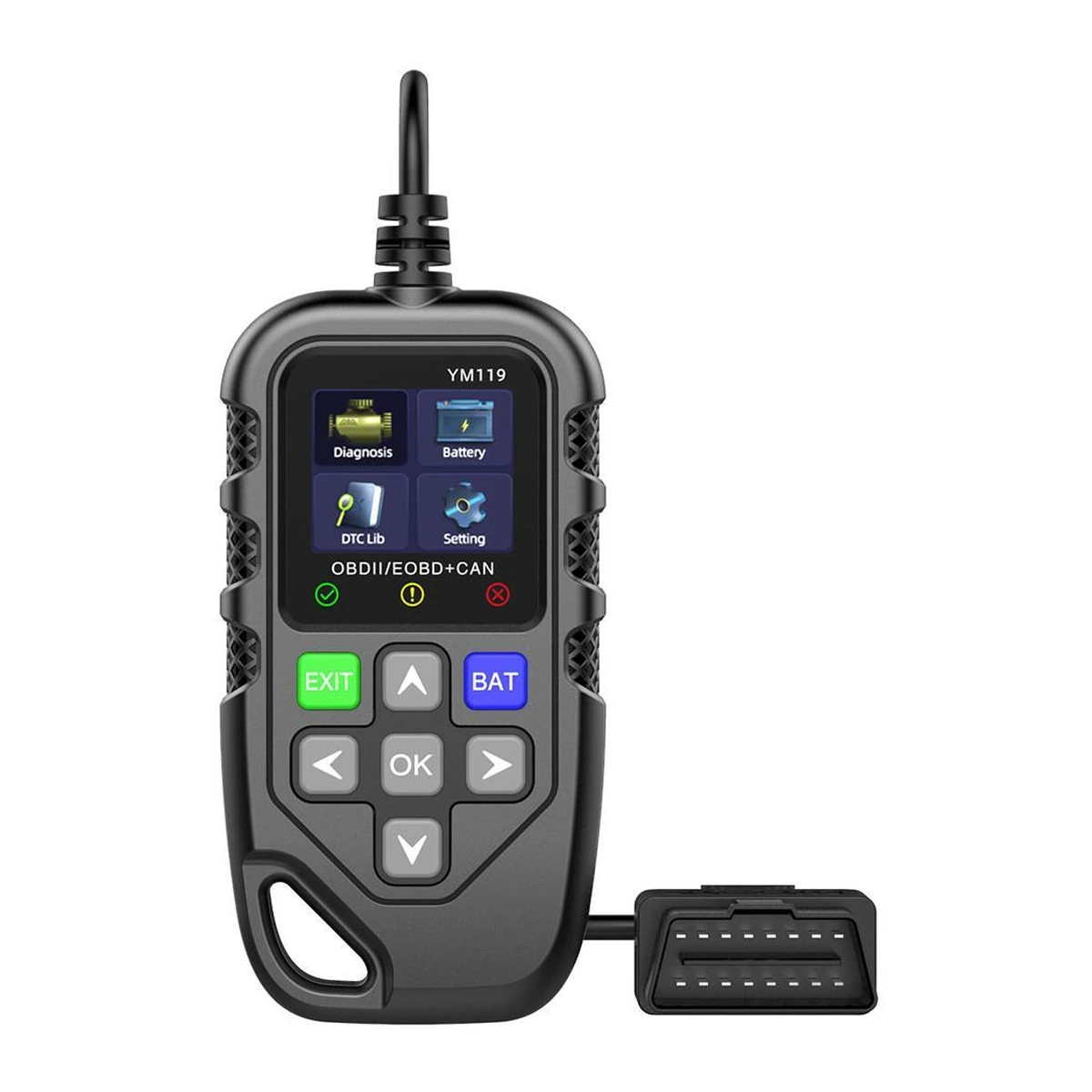

YM119 Compact OBD2 Code Reader with 1.8-inch TFT Color Display

Technical specifications

YM119 Compact OBD2 Code Reader with 1.8-inch TFT Color Display. 1.8-inch TFT color display. Nine OBD-II protocols (listed). 13 built-in languages. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model

YM119

Controller

YM1141

Display / interface

1.8-inch TFT color display; UI 2.0

OBD protocol support

Nine OBD-II protocols (supplier listed); confirm exact supported vehicle and diagnostic functions

Electronic manual

QR-access English electronic manual

Device languages

13: Chinese, English, Russian, French, German, Spanish, Portuguese, Italian, Finnish, Dutch, Polish, Japanese and Korean

Design

Grooved anti-slip grip and hanging hole for storage

Customization

Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Device language options are listed.

Material

ABS+silicone

Display

1.8-inch TFT color display

Operating voltage (listed)

5V-20V

Operating current (listed)

18mA

Operating temperature (listed)

0 C to 60 C

Storage temperature

-20 C to 70 C

Vehicle / application reference

12V gasoline vehicles: US 1996 onward / Europe 2003 onward, as listed by supplier. Confirm make, model, year and protocol before ordering.

Product dimensions (excluding cable)

129 x 68 x 18mm

Net product weight

149g

Retail box dimensions

200 x 130 x 25mm

Packed gross weight

227g

Master carton dimensions

430 x 360 x 315mm

Carton quantity (not MOQ)

50pcs

Carton gross weight

12.7kg

Documents listed by supplier

FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
