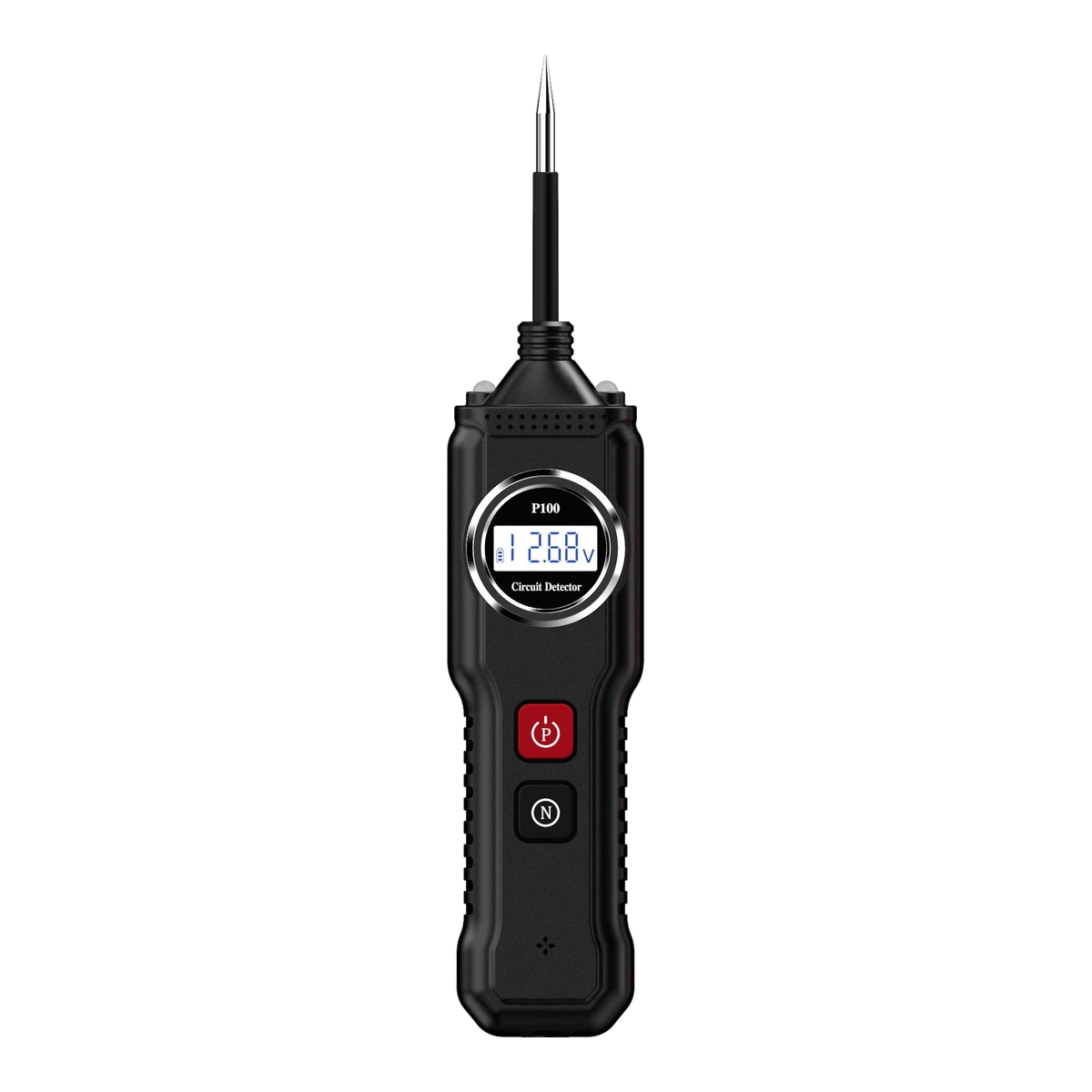

P100 Automotive Electrical Circuit Tester with Component Activation and 4 m Lead

Explore P100 automotive electronics sourcing.

Eight electrical test functions
0.01-100V voltage measurement
0-8A component activation / 4 m lead

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

PRODUCT VIEWS

Explore views and colors.

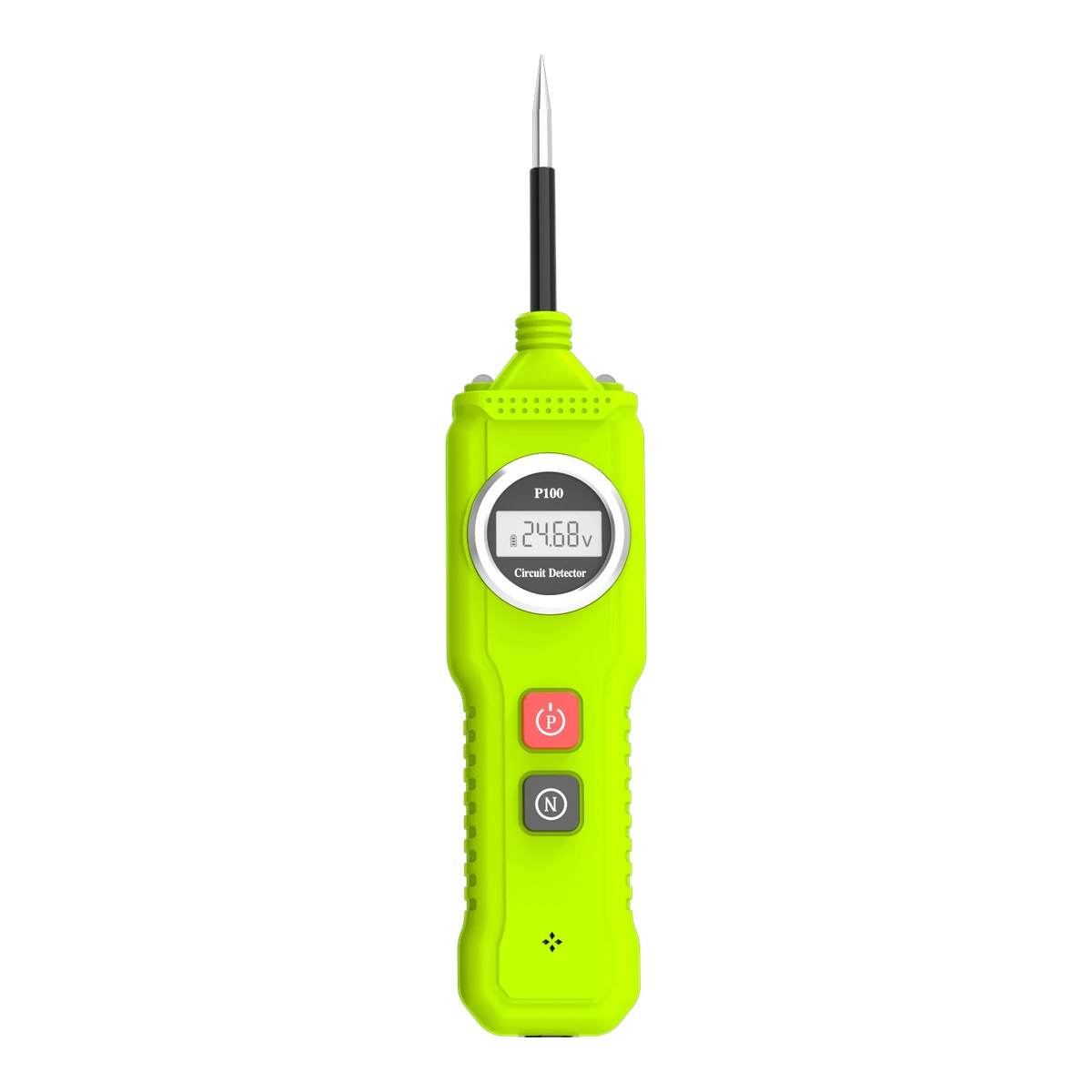

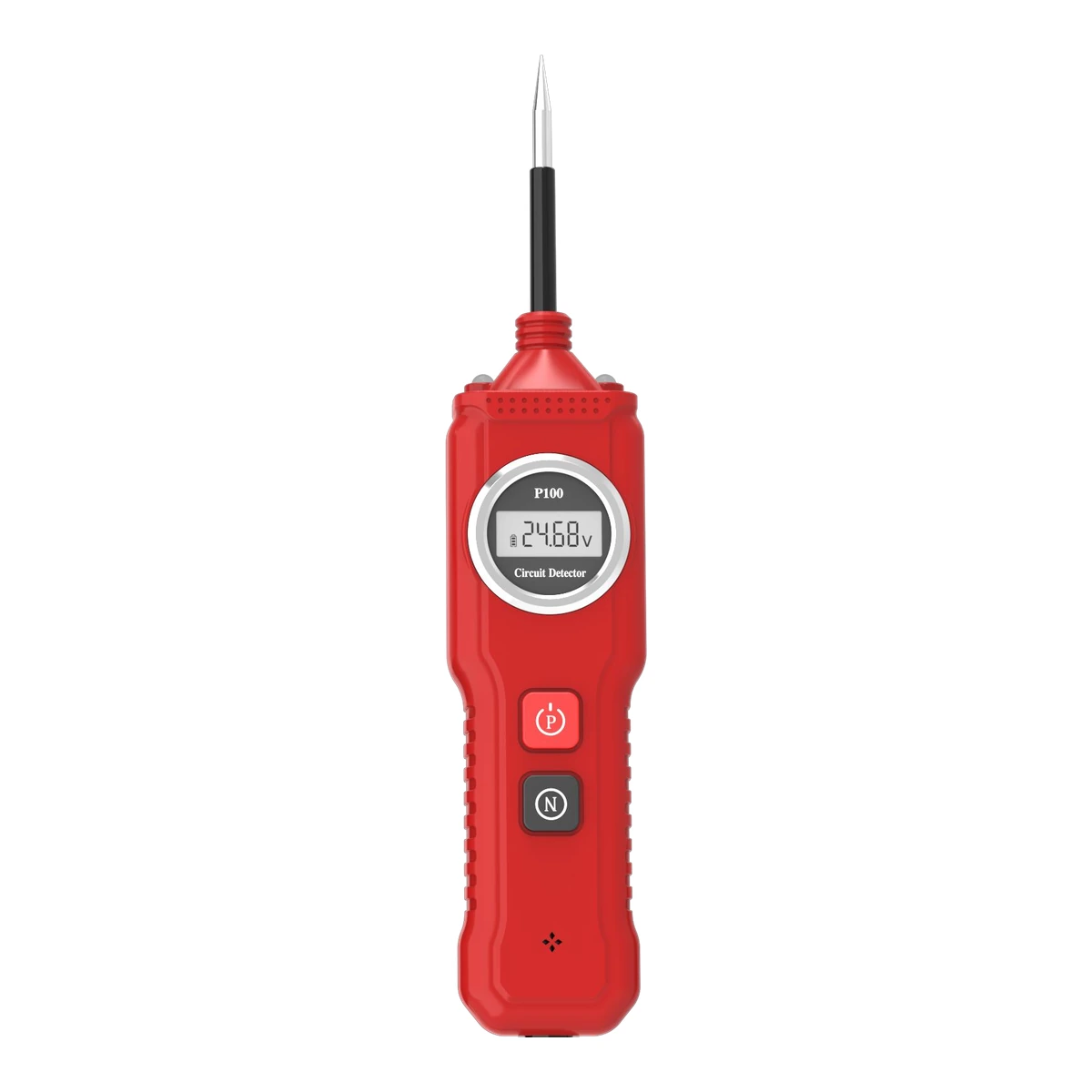

P100 additional product or color reference from the supplied catalog — Original catalog product view. Confirm selected model, color, configuration and included accessories.

MODEL DETAILS

Technical specifications

P100 Automotive Electrical Circuit Tester with Component Activation and 4 m Lead. Eight electrical test functions. 0.01-100V voltage measurement. 0-8A component activation / 4 m lead. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: P100
Eight test functions: Voltage, resistance, diode, continuity / open circuit, polarity, short circuit, ground and component activation
Voltage measurement range: 0.01-100V (measurement range; device operating voltage is listed separately)
Resistance range: 1 Ohm to 220 kOhm
Diode test range (listed): 0.01-100V
Component activation current: 0-8A; external 12V/24V supply or vehicle battery required for activation only
Automatic recognition: Automatic switching among voltage, resistance, diode and continuity functions
Display and lighting: Four-digit TFT display; two protective LED work lights
Design: Ergonomic grip; plated decorative display ring
Dimension clarification: Source gives 210 x 420 x 20 mm excluding cable, while box dimensions are 250 x 90 x 50 mm. Product dimensions require confirmation; no correction is assumed.
Customization: Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Language options are listed.
Material: ABS+silicone
Display: 4-digit TFT display
Operating voltage (listed): 5V-40V
Operating current (listed): 40mA
Operating temperature (listed): 0 C to 60 C
Storage temperature: -20 C to 70 C

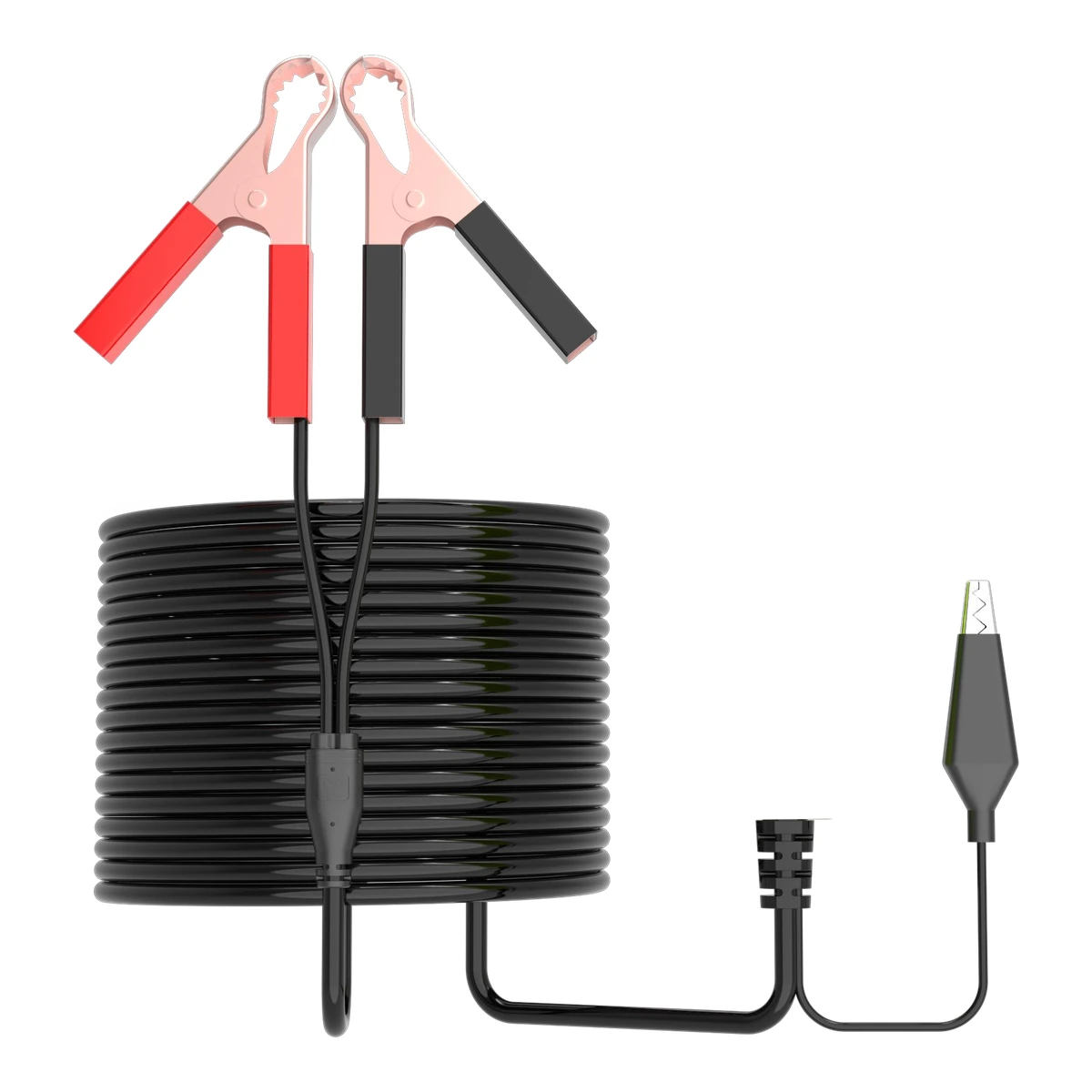

Activation lead length: 4m
Power supply (listed): 2 x AAA batteries for the tester; external 12V/24V supply or vehicle battery for component activation only. Confirm the connection procedure.
Vehicle / application reference: Cars, trucks, vans, construction vehicles and electric vehicles (supplier listed). Confirm circuit voltage and use within the selected function rating.
Product dimensions (excluding cable): 210 x 420 x 20mm
Net product weight: 245g
Retail box dimensions: 250 x 90 x 50mm
Packed gross weight: 317g
Master carton dimensions: 430 x 360 x 315mm
Carton quantity (not MOQ): 48pcs
Carton gross weight: 16.5kg
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
