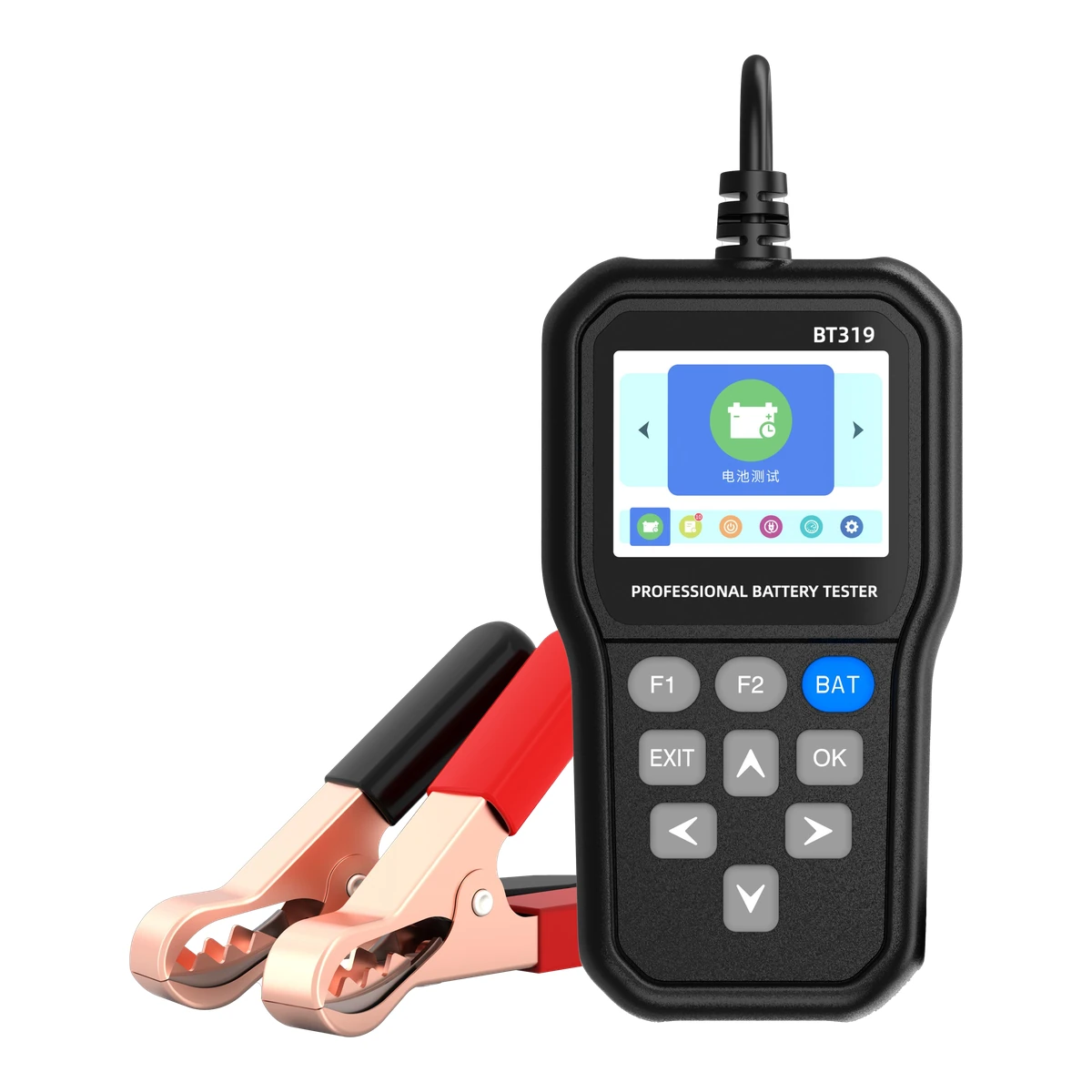

BT319 12V/24V Bluetooth Battery Tester with 2.4-inch IPS Display and 32 Records

Explore BT319 automotive electronics sourcing.

12V/24V / 100-2000 CCA
2.4-inch IPS / 32 test records
Four-wire SOC and SOH testing

Wholesale MOQConfirm with sales

OEM MOQConfirm with sales

Price / lead timeBy quotation

Samples / brandingAsk for availability

Supplier-provided configuration. Please confirm the exact model, color, samples and wholesale terms with sales.

MODEL DETAILS

Technical specifications

BT319 12V/24V Bluetooth Battery Tester with 2.4-inch IPS Display and 32 Records. 12V/24V / 100-2000 CCA. 2.4-inch IPS / 32 test records. Four-wire SOC and SOH testing. Request the selected configuration, vehicle or fluid compatibility, samples, wholesale pricing and OEM options from YAGUFE. Specifications are translated from the supplied catalog; confirm the ordered version and supporting documents.

Model: BT319
Display: 2.4-inch IPS color display; brightness levels 0-10; updated UI
Battery test voltage: 12V / 24V
Battery measurements: State of charge (SOC), state of health (SOH), internal resistance 0.00-99.99 mOhm, voltage 0.00-30V and cold-cranking current 100-2000 CCA
System tests: Maximum load, starting / cranking load and charging system
Voltage monitoring: Battery voltage curve
Measurement method: Four-wire testing
Firmware and protection: OTA firmware updates; reverse-polarity protection (supplier listed)
Test memory: 32 records, saved for review
Device languages: 14 languages; confirm selected language pack
Sound settings: Volume levels 0-10
App: App with 25 languages; confirm app and platform
Shortcuts: F1 / F2 shortcut keys
Customization: Supplier-listed options: packaging, color, logo, model name and functions. Confirm selected options, sample, MOQ, lead time and documentation with YAGUFE. Device language customization is listed.
Battery-test applications: Cars, trucks, buses, diesel vehicles, motorcycles, boats, yachts and ATVs with supported 12V/24V batteries. This battery-test application list does not extend OBD vehicle compatibility.
Supported battery types: STD conventional lead-acid; AGM valve-regulated; GEL; EFB flooded batteries
Battery rating standards: CCA,DIN,EN,IEC,GB,SAE,BCI,MCA,CA,JIS
Material: ABS+silicone
Operating voltage (listed): 6V-30V
Operating current (listed): 25-36mA
Bluetooth version: 5.1
Operating / storage temperature: -20 C to 70 C
Internal resistance range: 0.00-99.99mOhm
Test lead length: 80cm
Product dimensions (excluding cable): 137 x 76 x 24mm
Net product weight: 228g
Retail box dimensions: 200 x 130 x 45mm
Packed gross weight: 319g
Master carton dimensions: 430 x 360 x 315mm
Carton quantity (not MOQ): 30pcs
Carton gross weight: 10.2kg
Documents listed by supplier: FCC / CE / RoHS listed by supplier; request documents for the exact model, configuration and destination market.

Specifications are based on the supplied catalog or quotation. Playback and wireless range depend on use conditions. Confirm the selected configuration, colors, packaging, samples and applicable MOQ before ordering. Product appearance is shown for reference; no YAGUFE logo has been added to the product image.
